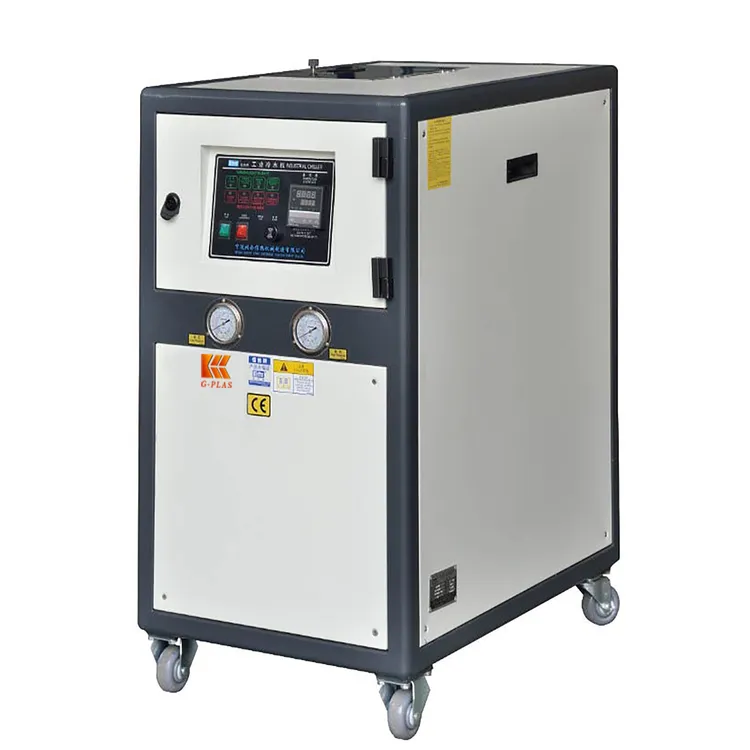

XC-20WCI WATER COOLED CHILLER

Technical Data

Technical parameters and machine configuration for this model.

Model	XC-20WCI
Machine Type	Water Cooled Industrial Chiller
Cooling Method	Water Cooled
Cooling Capacity	50,000 Kcal/h (≈ 58.2 kW)
Compressor Type	Hermetic Scroll Compressor
Compressor Brand	Copeland
Number of Compressors	2
Total Compressor Power	18 kW
Refrigerant	R22 / R407C
Chilled Water Pump Power	2.2 kW
Maximum Chilled Water Flow	315 L/min
Maximum Pressure	26 m
Flow Water Inlet / Outlet Pipe	1.5 inch
Condensing Water Flow	≥ 240 L/min
Chilled Water Inlet / Outlet Pipe	2 inch
Water Tank Capacity	300 L
Temperature Control Range	5°C – 35°C
Power Supply	380V / 50Hz / 3 Phase
External Dimensions	1700 × 950 × 1200 mm
Weight	550 kg
Certification	CE / ISO
Application	Injection Molding, Blow Molding, Extrusion and Industrial Cooling Systems
