XC-10WCI WATER COOLED CHILLER

Name: XC-10WCI WATER COOLED CHILLER
Brand: SONLY
SKU: a68f5abfca09346.54769058

Product Code a68f5abfca09346.54769058

Views 665

Precision Engineering Reliable industrial accuracy

Energy Efficiency Optimized power performance

Global Technical Support Technical service worldwide

Machine configuration can be discussed according to your production requirements.

Product Tags

Machine Details

Product Overview

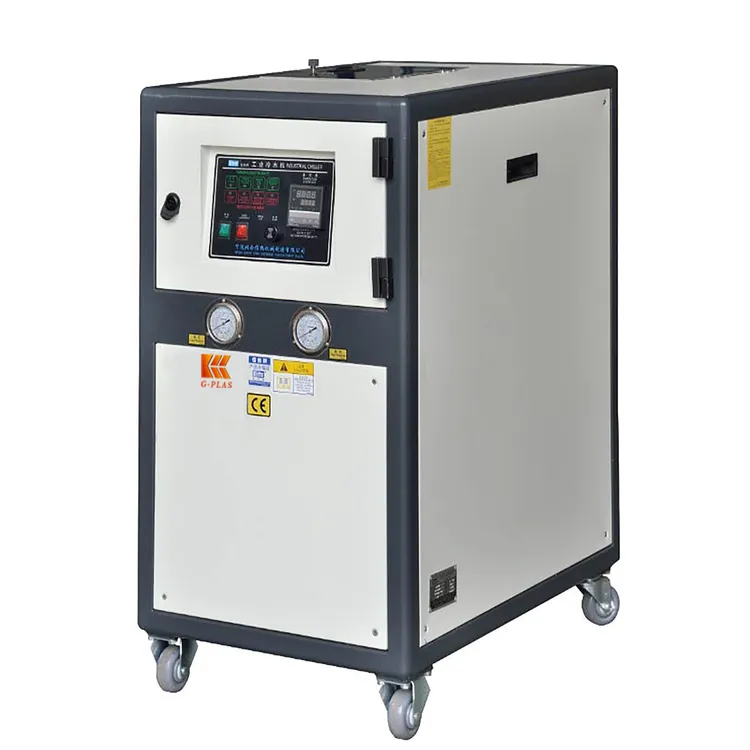

XC-10WCI WATER COOLED CHILLER

Technical Data

Technical parameters and machine configuration for this model.

Model	XC-10WCI
Machine Type	Water Cooled Industrial Chiller
Cooling Method	Water Cooled
Cooling Capacity	28,000 Kcal/h (111,100 BTU/h)
Compressor Type	Hermetic Scroll Compressor
Compressor Brand	Copeland
Compressor Power	9 kW
Number of Compressors	1
Refrigerant	R22 / R407C
Chilled Water Pump Power	1.5 kW
Maximum Chilled Water Flow	217 L/min
Maximum Pressure	25 m
Chilled Water Inlet / Outlet	1.5 inch
Condensing Water Flow	≥ 135 L/min
Condensing Water Inlet / Outlet	1.5 inch
Water Tank Capacity	170 L
Temperature Control Range	5°C – 35°C
Power Supply	380V / 50Hz / 3 Phase
External Dimensions	1150 × 800 × 1150 mm
Weight	400 kg
Certification	CE / ISO
Application	Injection Molding, Blow Molding, Extrusion and Industrial Cooling Systems
