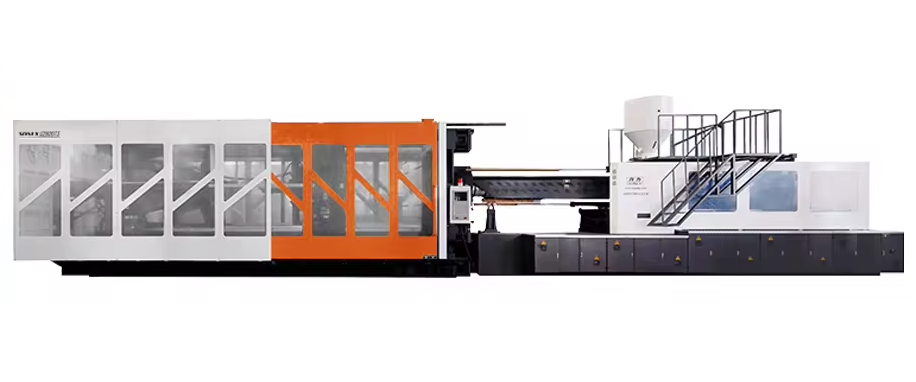

SONLY Injection Molding Machine

U2250TS Between tie bar: 1800x1580mm Shot weight: 15129g

Name: U2250TS Between tie bar: 1800x1580mm Shot weight: 15129g
Brand: SONLY
SKU: a6a8c26f2408410.99843932

Product Code a6a8c26f2408410.99843932

Precision Engineering Reliable industrial accuracy

Energy Efficiency Optimized power performance

Global Technical Support Technical service worldwide

Machine configuration can be discussed according to your production requirements.

Product Tags

Machine Details

Product Overview

U2250TS Between tie bar: 1800x1580mm Shot weight: 15129g

Technical Data

Technical parameters and machine configuration for this model.

Specification	Unit	A	B	C	D
Internationally Recognized Model		24297
INJECTION UNIT
Screw Diameter	mm	140	150	160	170
Screw L/D Ratio	L/D	23.7	22	20.5	19.3
Theoretical Shot Volume	cm³	14309.0	16426.1	18689.3	21098.4
Injection Pressure	MPa	169.8	147.9	130.0	115.2
Theoretical Shot Weight	g	13164	15112	17194	19411
Theoretical Shot Weight	oz	464.689	533.454	606.948	685.208
Screw Speed	rpm	60
CLAMPING DEVICE
Clamping Force	kN	22500
Toggle Stroke	mm	1910
Space Between Tie Bars	mm	1800×1580
Max. Mould Height	mm	1700
Min. Mould Height	mm	700
Ejector Stroke	mm	500
Ejector Force	kN	490
Ejector Number		28+1
Die Hole Diameter	mm	315
OTHER
System Pressure	MPa	16
Ordinary Motor Power	kW	45+55+55
Heater Power	kW	140
Oil Tank Capacity	L	3000
Machine Weight	Ton	26+115
Boundary Dimension (L×W×H)	m	8.0×3.1×4.1	12.0×4.0×2.5
Servo Driver Capacity	kW	55×4
