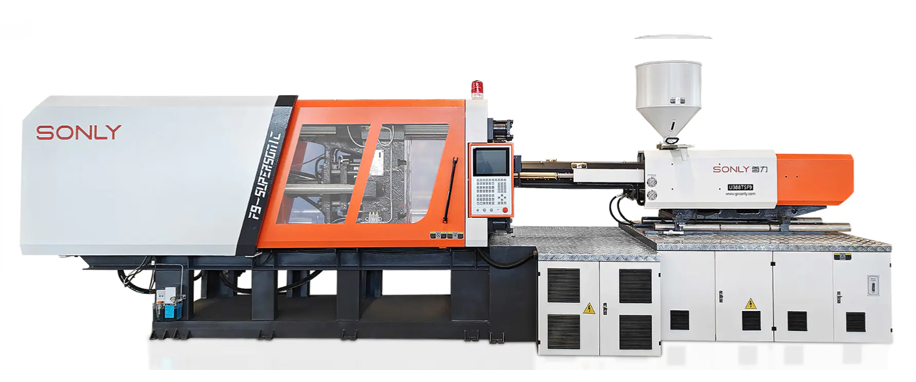

F9-350TS 710*655 SERVO MOTOR MACHINE

Name: F9-350TS 710*655 SERVO MOTOR MACHINE
Brand: SONLY
SKU: a6a842f6285a017.81386160

Product Code a6a842f6285a017.81386160

Views 136

Precision Engineering Reliable industrial accuracy

Energy Efficiency Optimized power performance

Global Technical Support Technical service worldwide

Machine configuration can be discussed according to your production requirements.

Product Tags

Machine Details

Product Overview

F9-350TS 710*655 SERVO MOTOR MACHINE

Technical Data

Technical parameters and machine configuration for this model.

SPECIFICATIONS		U350TSF9
INTERNATIONALLY RECOGNIZED MODEL		2020
INJECTION		A	B	C	D
SCREW DIAMETER	mm	60	65	70	75
SCREW L/D RATIO	L/D	23.8	22	20.4	19.1
THEORETICAL SHOT VOLUME	cm³	1003.2	1177.4	1365.5	1567.5
INJECTION PRESSURE	Mpa	201.2	171.5	147.9	128.8
THEORETICAL SHOT WEIGHT	g	912.9	1071.4	1242.6	1426.5
THEORETICAL INJECTION RATE	mm/s	140.0
THEORETICAL SHOT WEIGHT	oz	32.0	37.6	43.6	50.1
SCREW SPEED	rpm	190
CLAMPING DEVICE
CLAMPING FORCE	Kn	3500
TOGGLE STROKE	mm	660
SPACE BETWEEN TIE BARS	mm	710×655
MAX. MOULD HEIGHT	mm	640
MIN. MOULD HEIGHT	mm	200
EJECTOR STROKE	mm	150
EJECTOR FORCE	Kn	77
EJECTOR NUMBER		12+1
DIE HOLE DIAMETER	mm	160
OTHER
SYSTEM PRESSURE	Mp	17.5
HEATER POWER	Kw	23.5
OIL TANK CAPACITY	L	440
MACHINE WEIGHT	Ton	11
BOUNDARY DIMENSION (L×W×H)	m	6.8×1.6×2.42
SERVO DRIVER CAPACITY	Kw	55
